Aluminium 6061-T6 alloy high pressure SCUBA cylinders manufactured by MES range from 0,5 lt pony to 11,1 lt high performance.
Aluminium alloy SCUBA cylinders are manufactured according to ISO 7866 design standard and 2014/68/EU (PED) directive.
MES aluminium alloy SCUBA cylinders are highly preferred because they offer great comfort outside the water by being light-weight, while on the other hand they provide high performance in the water with right buoyancy. In addition to their lightweight and buoyancy performance, the aluminium cylinders are also safe and healthy by being tested at 300 bar pressure minimum and being corrosion-resistant.

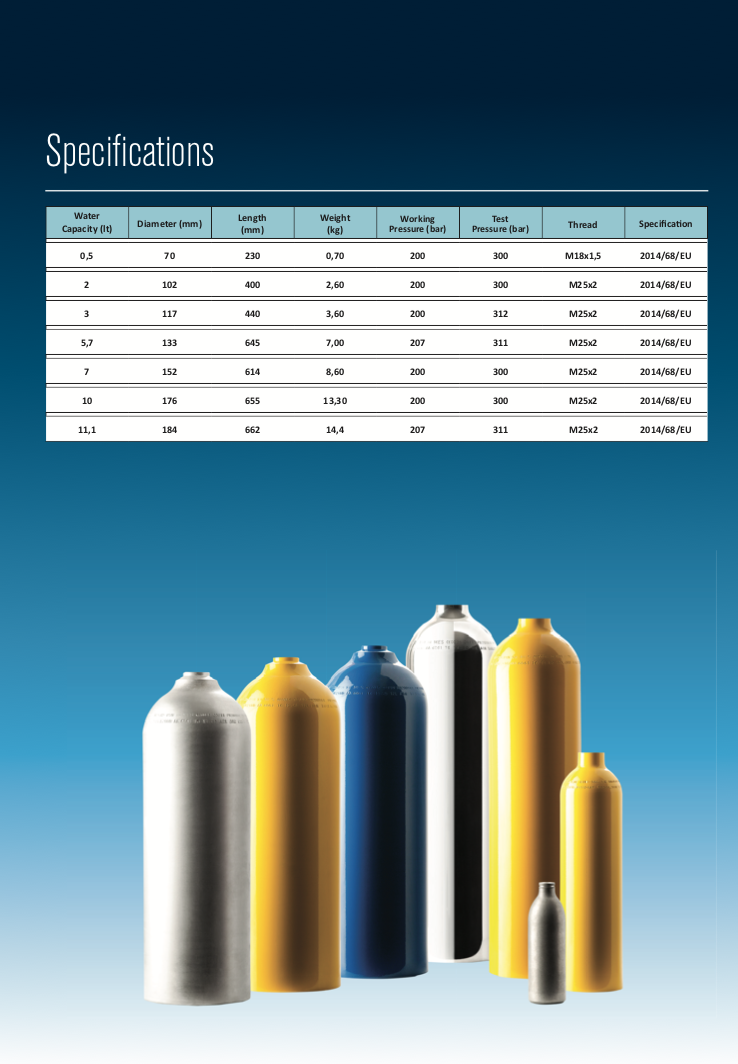

| Water Capacity (lt) | Diameter (mm) | Length (mm) | Weight (kg) | Working Pressure (bar) | Test Pressure (bar) | Thread | Specification |
|---|---|---|---|---|---|---|---|
| 0,5 | 70 | 230 | 0,70 | 200 | 300 | M18x1,5 | 2014/68/EU |
| 2 | 102 | 400 | 2,60 | 200 | 300 | M25x2 | 2014/68/EU |
| 3 | 117 | 440 | 3,60 | 200 | 312 | M25x2 | 2014/68/EU |
| 5,7 | 133 | 645 | 7,00 | 207 | 311 | M25x2 | 2014/68/EU |
| 7 | 152 | 614 | 8,60 | 200 | 300 | M25x2 | 2014/68/EU |
| 10 | 176 | 655 | 13,30 | 200 | 300 | M25x2 | 2014/68/EU |
| 11,1 | 184 | 662 | 14,40 | 207 | 311 | M25x2 | 2014/68/EU |
