Aluminium alloy high pressure specialty gas cylinders for industrial service manufactured by MES range from 0,42 lt to 10 lt and are tested at various pressures.
Aluminium alloy high pressure industrial specialty gas cylinders are manufactured in accordance with ISO 7866 design standard and 2010/35/EU (TPED) directive.
MES production aluminium alloy cylinders are ideal for industrial use as they are lightweight and safe.
The cylinders are also available with aluminium 6061-T6 alloy neck-rings for valve protection, which are manufactured in fully integrated MES facility by forging technology, as well.

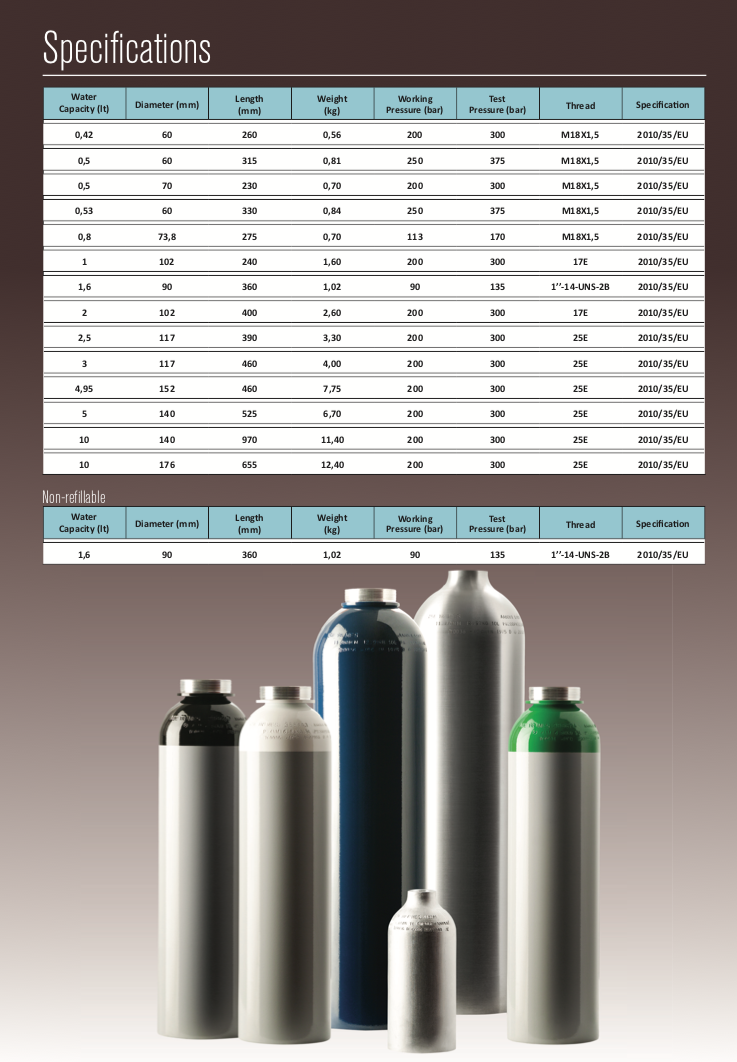

| Water Capacity (lt) | Diameter (mm) | Length (mm) | Weight (kg) | Working Pressure (bar) | Test Pressure (bar) | Thread | Specification |
|---|---|---|---|---|---|---|---|
| 0,42 | 60 | 260 | 0,56 | 200 | 300 | M18X1.5 | 2010/35/EU |
| 0,5 | 60 | 315 | 0,81 | 250 | 375 | M18X1.5 | 2010/35/EU |
| 0,5 | 70 | 230 | 0,70 | 200 | 300 | M18x1,5 | 2010/35/EU |
| 0,53 | 60 | 330 | 0,84 | 250 | 375 | M18X1.5 | 2010/35/EU |
| 0,8 | 73,8 | 275 | 0,70 | 113 | 170 | M18x1,5 | 2010/35/EU |
| 1 | 102 | 240 | 1,60 | 200 | 300 | 17E | 2010/35/EU |
| 1,6 | 90 | 360 | 1,02 | 90 | 135 | 1''-14-UNS-2B | 2010/35/EU |
| 2 | 102 | 400 | 2,60 | 200 | 300 | 17E | 2010/35/EU |
| 2,5 | 117 | 390 | 3,30 | 200 | 300 | 25E | 2010/35/EU |
| 3 | 117 | 460 | 4,00 | 200 | 300 | 25E | 2010/35/EU |
| 4,95 | 152 | 460 | 7,75 | 200 | 300 | 25E | 2010/35/EU |
| 5 | 140 | 525 | 6,70 | 200 | 300 | 25E | 2010/35/EU |
| 10 | 140 | 970 | 11,40 | 200 | 300 | 25E | 2010/35/EU |
| 10 | 176 | 655 | 12,40 | 200 | 300 | 25E | 2010/35/EU |
| Water Capacity (lt) | Diameter (mm) | Length (mm) | Weight (kg) | Working Pressure (bar) | Test Pressure (bar) | Thread | Specification |
|---|---|---|---|---|---|---|---|
| 1,6 | 90 | 360 | 1,02 | 90 | 135 | 1''-14-UNS-2B | 2010/35/EU |
