Aluminium alloy high pressure cylinders for medical gases manufactured by MES range from 1 lt to 10 lt and are tested at 300 bar pressure.
Medical gas cylinders are all manufactured according to ISO 7866 design standard and 2010/35/EU (TPED) directive.
The aluminium alloy medical gas cylinders offer noteworthy advantages such as being lightweight, corrosion-resistant and non-magnetic.
For medical cylinders range; in addition to 6061-T6 alloy, MES also presents 7060 alloy light weight cylinders which are also tested 300 bar pressure, while offering 30% weight advantage.

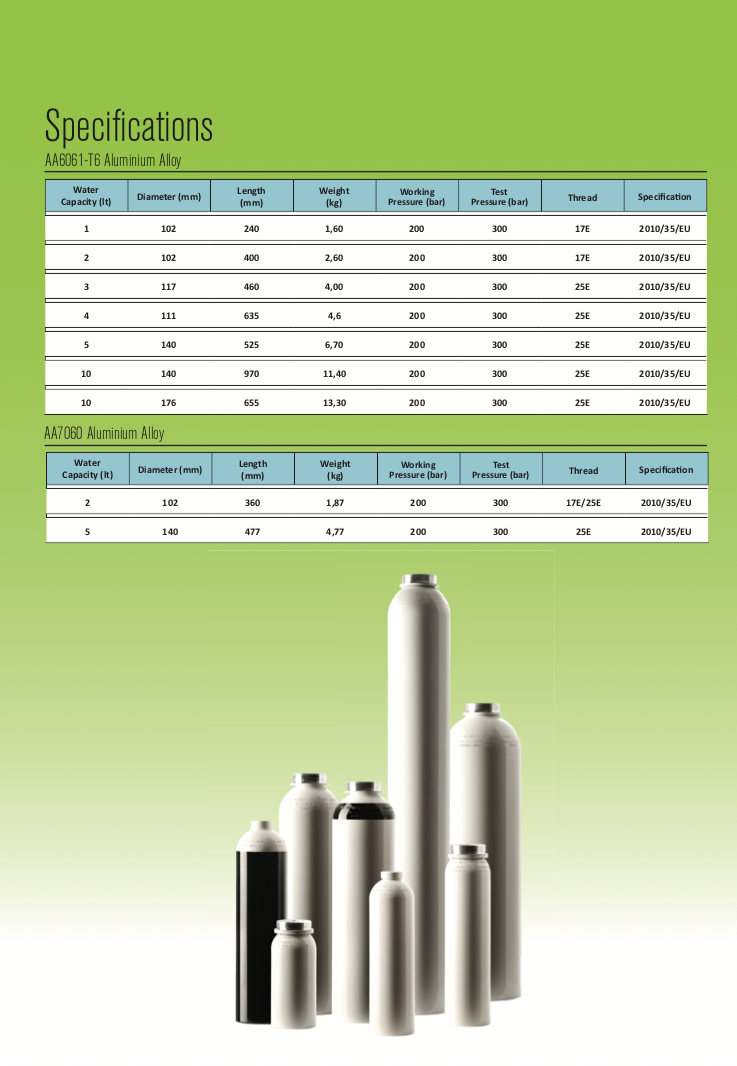

| Water Capacity (lt) | Diameter (mm) | Length (mm) | Weight (kg) | Working Pressure (bar) | Test Pressure (bar) | Thread | Specification |
|---|---|---|---|---|---|---|---|
| 1 | 102 | 240 | 1,60 | 200 | 300 | 17E | 2010/35/EU |
| 2 | 102 | 400 | 2,60 | 200 | 300 | 17E | 2010/35/EU |
| 3 | 117 | 460 | 4,00 | 200 | 300 | 25E | 2010/35/EU |
| 4 | 111 | 635 | 4,6 | 200 | 300 | 25E | 2010/35/EU |
| 5 | 140 | 525 | 6,70 | 200 | 300 | 25E | 2010/35/EU |
| 10 | 140 | 970 | 11,40 | 200 | 300 | 25E | 2010/35/EU |
| 10 | 176 | 655 | 13,30 | 200 | 300 | 25E | 2010/35/EU |
| Water Capacity (lt) | Diameter (mm) | Length (mm) | Weight (kg) | Working Pressure (bar) | Test Pressure (bar) | Thread | Specification |
|---|---|---|---|---|---|---|---|
| 2 | 102 | 360 | 1,87 | 200 | 300 | 17E / 25E | 2010/35/EU |
| 3,5 | 102 | 588 | 2,87 | 200 | 300 | 17E / 25E | 2010/35/EU |
| 5 | 140 | 477 | 4,77 | 200 | 300 | 25E | 2010/35/EU |
