MES offers lightweight aluminium 6061-T6 alloy high pressure CO2 cylinders for beverage service tested at 250 & 300 bar pressures.
The cylinders are manufactured in accordance with ISO 7866 design standard and 2010/35/EU (TPED) directive.
Aluminium alloy high pressure CO2 cylinders are all tested for hydrocarbon rate.
They are clean inside and healthy, thus ideal for carbonating drinks. Also available in various decorative surface finishes.

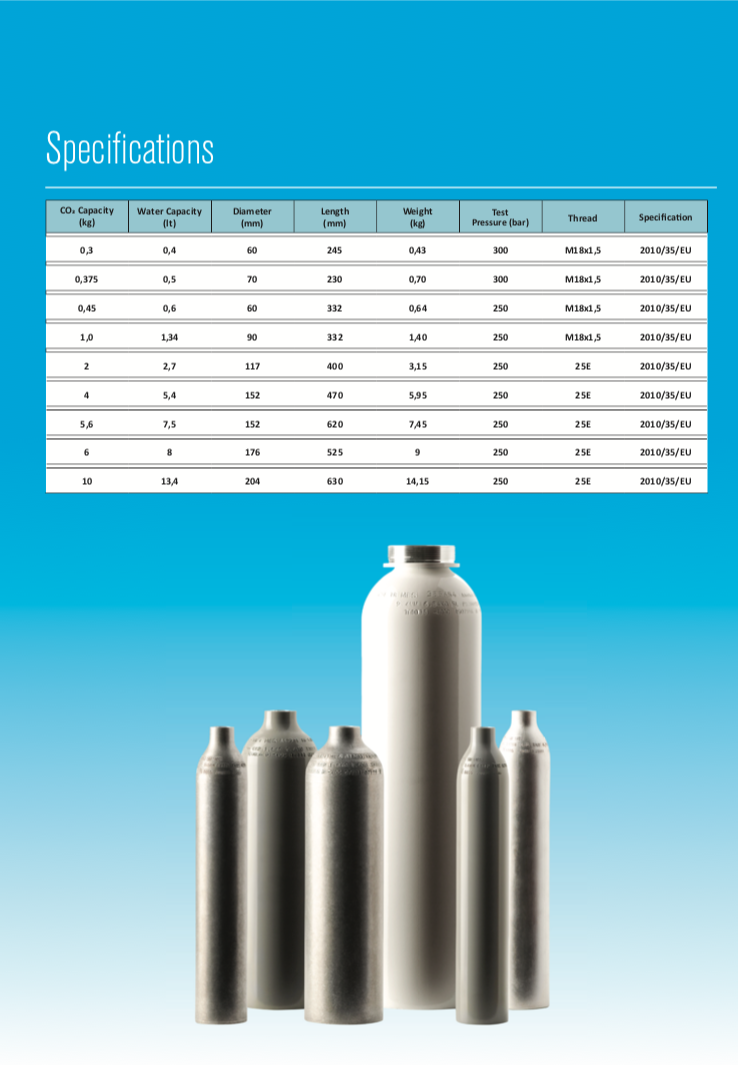

| C02 Capacity (kg) | Water Capacity (lt) | Diameter (mm) | Lenght (mm) | Weight (kg) | Test Pressure (bar) | Thread | Specification |
|---|---|---|---|---|---|---|---|
| 0,3 | 0,4 | 60 | 245 | 0,43 | 300 | M18x1,5 | 2010/35/EU |
| 0,375 | 0,5 | 70 | 230 | 0,70 | 300 | M18x1,5 | 2010/35/EU |
| 0,45 | 0,6 | 60 | 332 | 0,64 | 250 | M18x1,5 | 2010/35/EU |
| 1,0 | 1,34 | 90 | 332 | 1,40 | 250 | M18x1,5 | 2010/35/EU |
| 2 | 2,7 | 117 | 400 | 3,15 | 250 | 25E | 2010/35/EU |
| 4 | 5,4 | 152 | 470 | 5,95 | 250 | 25E | 2010/35/EU |
| 5,6 | 7,5 | 152 | 620 | 7,45 | 250 | 25E | 2010/35/EU |
| 6 | 8 | 176 | 525 | 9 | 250 | 25E | 2010/35/EU |
| 10 | 13,4 | 204 | 630 | 14,15 | 250 | 25E | 2010/35/EU |
