Aluminium 6061-T6 alloy high pressure CO2 cylinders manufactured by MES come in all sizes and surface finishes available for all regions.
The aluminium alloy CO2 cylinders are manufactured according to BS 5045-8:2000 design standard and 2014/68/EU (PED) directive.
The aluminium alloy CO2 cylinders manufactured by MES range from 212 bar to 310 bar test pressure, are painted high quality powder paint and offered with consistent and short delivery terms.

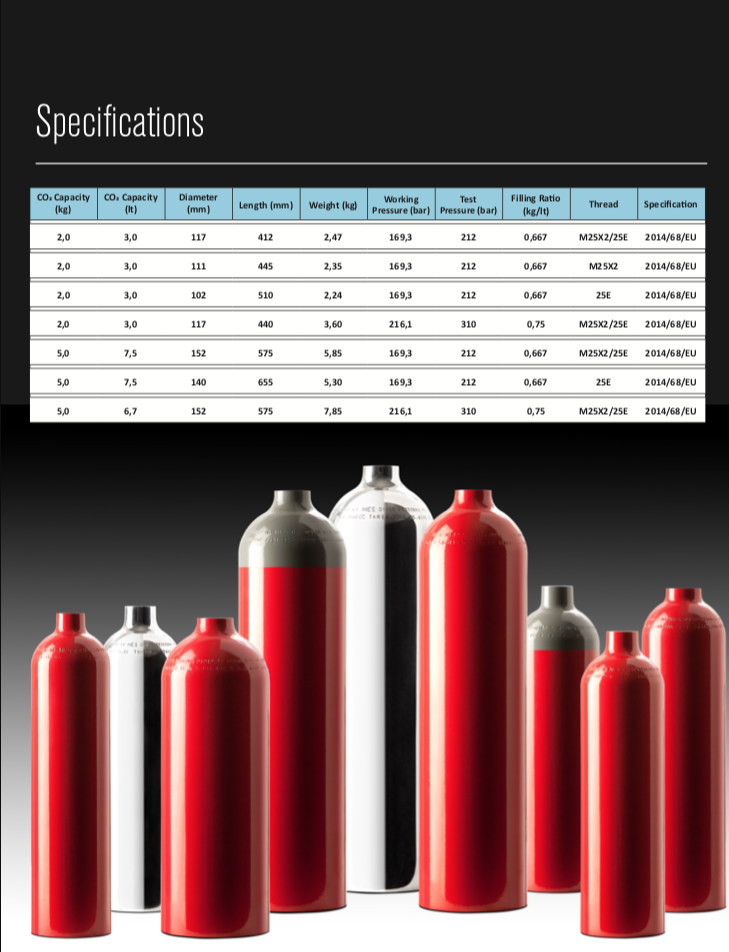

| C02 Capacity (kg) | Water Capacity (lt) | Diameter (mm) | Lenght (mm) | Weight (kg) | Working Pressure (bar) | Test Pressure (bar) | Filling Ratio (kg/lt) | Thread | Specification |
|---|---|---|---|---|---|---|---|---|---|
| 2,0 | 3,0 | 117 | 412 | 2,47 | 169,3 | 212 | 0,667 | M25x2/25E | 2014/68/EU |
| 2,0 | 3,0 | 111 | 445 | 2,35 | 169,3 | 212 | 0,667 | M25x2 | 2014/68/EU |
| 2,0 | 3,0 | 102 | 510 | 2,24 | 169,3 | 212 | 0,667 | 25E | 2014/68/EU |
| 2,0 | 3,0 | 117 | 440 | 3,60 | 216,1 | 310 | 0,75 | M25x2/25E | 2014/68/EU |
| 5,0 | 7,5 | 152 | 575 | 5,85 | 169,3 | 212 | 0,667 | M25x2/25E | 2014/68/EU |
| 5,0 | 7,5 | 140 | 655 | 5,30 | 169,3 | 212 | 0,667 | 25E | 2014/68/EU |
| 5,0 | 6,7 | 152 | 575 | 7,85 | 216,1 | 310 | 0,75 | M25x2/25E | 2014/68/EU |
